Used CTL buying: what 'undercarriage 60%' should and should not mean

Compact track loaders eat undercarriages. Sand is nicer than shale, but heat, speed, and poor tensioning kill components just the same. When someone emails "60% undercarriage remaining," my next question is: measured how—by pin wear, by hours since turn, by eyeball? We try not to traffic in made-up percentages. We photograph sprockets, show roller flanges, and measure free play where it matters.

Undercarriage is the single biggest variable-cost item on a compact track loader. On a typical mid-frame CTL like a Cat 259D3 or Deere 331G, a complete undercarriage replacement— tracks, sprockets, rollers, idlers, and tensioners—runs $8,000 to $14,000 in parts and labor depending on brand, aftermarket vs. OEM parts, and shop rates. That cost can easily represent 15–25% of the machine's total used value. Buying a machine without understanding undercarriage condition is like buying a car without checking the transmission—except the undercarriage repair bill is higher.

The inspection order we use on intake

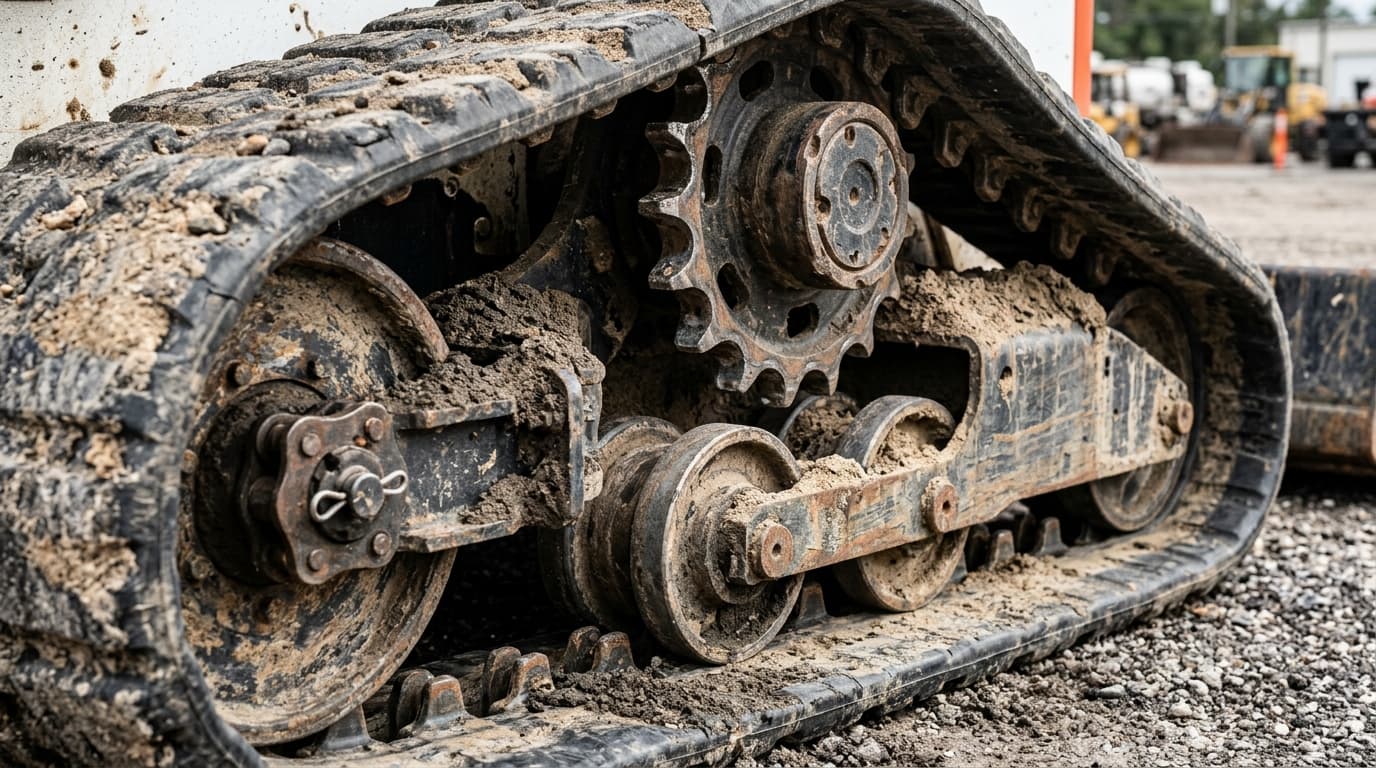

Track tension first (a slack track murders components), then sprocket hook wear, then roller condition and leaks at final drives. If the carrier rollers are spalling, you are not debating a "minor" repair—you are debating a rebuild before the job starts.

Here is the sequence we follow during our IRON+ intake inspection, and it is the same sequence we recommend to anyone evaluating a used CTL, whether from our yard or someone else's:

Step 1: Track tension. With the machine on level ground, measure sag at the mid-span between the front idler and rear sprocket. Most OEMs specify 0.75 to 1.25 inches of sag depending on model. Over-tight tracks accelerate sprocket and roller wear; loose tracks walk off sprockets and destroy guide lugs. We use a straight edge and a tape measure—nothing fancy, just consistent.

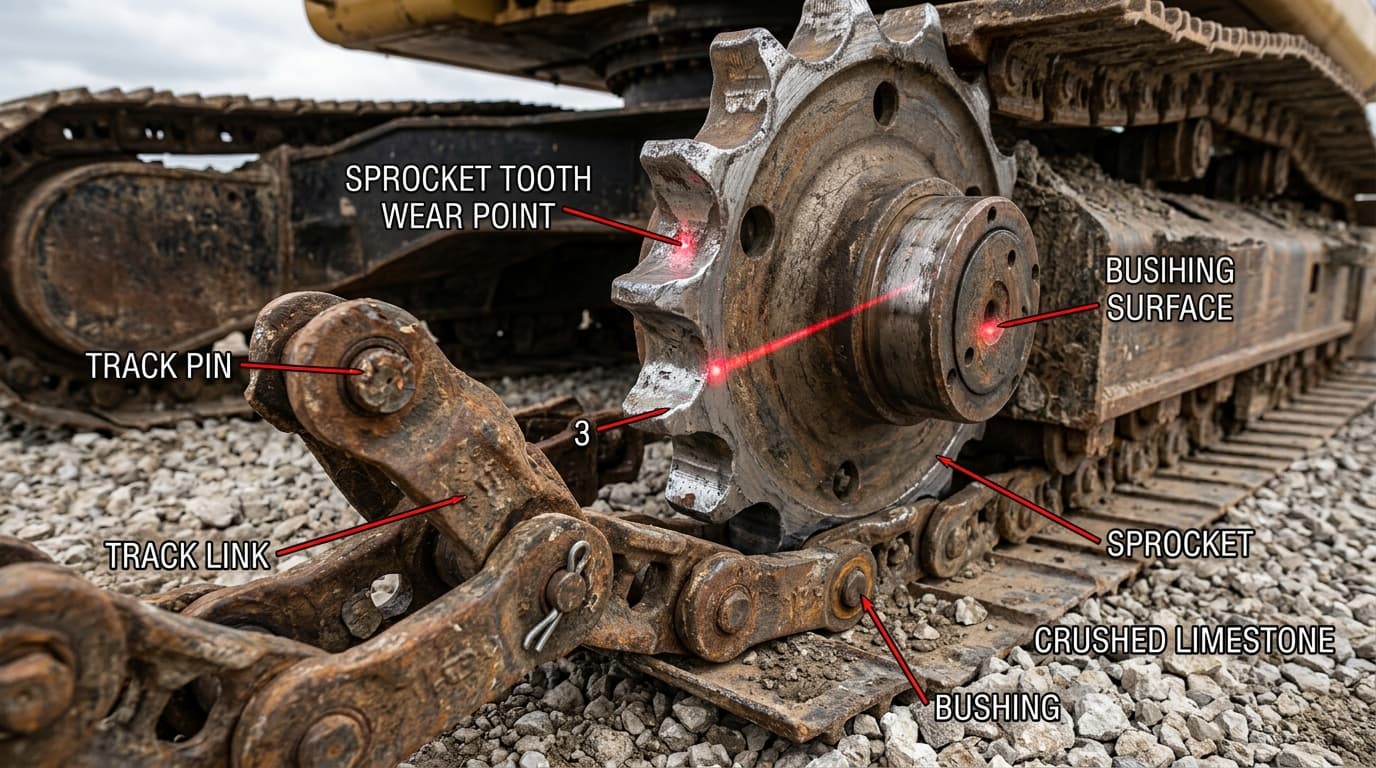

Step 2: Sprocket tooth wear. The drive sprocket is the first component to show wear because it is the only part of the undercarriage that transmits engine torque to the track. We look for hook-shaped teeth (indicating the sprocket has worn past its serviceable profile), missing teeth, and cracking at the tooth roots. A sprocket set on a mid-frame CTL runs $600 to $1,200 for OEM parts.

Step 3: Roller inspection.Bottom rollers carry the machine's weight; top rollers guide the track. We check for flat spots, spalling (surface flaking), seal leaks (oil weeping from roller ends), and excessive side play. A single bottom roller replacement is $250 to $500 depending on brand; a full set of five to seven bottom rollers is $1,500 to $3,500.

Step 4: Idler wear. The front idler absorbs impact loads and guides the track around the front of the undercarriage. We check for rim wear, bearing play, and seal condition. A worn idler allows the track to walk laterally, accelerating wear on everything else. Idler replacement runs $400 to $900 per side.

Step 5: Track condition. The rubber tracks themselves wear from the inside (drive lug wear from sprocket engagement) and the outside (ground contact surface). We measure drive lug height at multiple points and check for cracking, chunking, and steel cord exposure. A pair of quality aftermarket rubber tracks for a mid-frame CTL runs $2,500 to $4,500; OEM tracks can be $4,000 to $7,000.

Step 6: Final drive inspection. The final drives are the planetary gear sets that convert hydraulic motor output to sprocket rotation. We check for leaks at the output seal, unusual noise during operation, and oil condition if we can pull a sample. A final drive rebuild runs $2,500 to $5,000 per side; replacement with a reman unit is $3,500 to $6,000.

What "60% remaining" actually means (and does not mean)

When a seller says "undercarriage 60%," they are usually eyeballing the track rubber and guessing. That is not a measurement—it is a hope. A proper undercarriage assessment measures each component against the OEM's published wear limits and expresses remaining life as a percentage of those limits. A machine can have tracks at 70% remaining but sprockets at 30% remaining if the tracks were replaced recently but the sprockets were not. Reporting a single aggregate number is misleading at best.

On our listings at https://equipmentsupplyservice.com, we try to report undercarriage condition by component rather than a single percentage. We photograph the sprockets, rollers, idlers, and tracks from multiple angles and note any measurements we have taken. We are not perfect—sometimes a consignment arrives and we have to list it with "undercarriage condition to be confirmed at inspection"—but we try to give you enough visual evidence to form your own opinion.

Florida-specific wear patterns

Florida buyers: ask for interior roller photos if the machine lived on pavement vs sugar sand—same hours, different wear. And if you buy remotely, pay for an independent inspection; it is cheaper than a weekend wasted on a bad pin.

Sugar sand—the fine, dry quartz sand common across central and north Florida—is actually gentler on undercarriages than many buyers expect. It provides a cushioning effect that reduces impact loads on rollers and idlers. The problem is abrasion: fine sand works its way into every seal and accelerates wear on sprocket teeth and track drive lugs from the inside. A machine that ran 3,000 hours in Florida sand might have tracks with good lug height but sprockets that are hooked and rollers with compromised seals.

Contrast that with a machine that ran on crushed limestone in a quarry or road-base operation. Limestone is harder and more angular than sand, causing faster external wear on track surfaces and roller faces. But limestone does not infiltrate seals the way fine sand does, so internal components may actually be in better condition. The point is that hours alone do not tell the undercarriage story—application and ground conditions matter as much or more.

Budget planning: the real cost of undercarriage ownership

For fleet buyers planning total cost of ownership, we recommend budgeting $0.75 to $1.50 per operating hour for undercarriage maintenance and replacement on a mid-frame CTL in typical Florida conditions. That translates to $3,000 to $6,000 over 4,000 hours. The actual number depends on ground conditions, operator habits (high-speed travel and hard turns accelerate wear), and whether you use OEM or aftermarket components.

Aftermarket tracks from reputable manufacturers (Bridgestone, Camso/Camoplast, McLaren) typically cost 30–50% less than OEM and deliver 70–90% of OEM life in our experience. Aftermarket rollers and idlers vary more in quality—some are excellent, some are garbage. We have seen aftermarket bottom rollers fail at 800 hours that OEM rollers would have lasted 2,500 hours on the same machine in the same application. If you are going aftermarket on undercarriage components, buy from a supplier who stands behind the parts and can show you field data.

Our advice for remote buyers

If you are buying a used CTL from https://equipmentsupplyservice.com and cannot visit the yard in person, here is what we suggest: review all the undercarriage photos we provide. If the photos do not answer your questions, call us and we will take more. If you want additional assurance, hire an independent inspector (companies like IronPlanet Inspections, AEMP members, or local dealer service departments) to do a physical inspection on your behalf. We welcome inspectors to our yard—if we are not willing to let someone look, that should tell you something about the machine.

The inspection fee—typically $200 to $500 depending on scope—is a rounding error compared to the cost of a bad undercarriage. A $45,000 CTL with a $12,000 undercarriage surprise is really a $57,000 CTL. Know what you are buying before you wire the funds. That is the honest advice we give whether you are buying from us, from auction, or from a private party. Check our current CTL inventory at https://equipmentsupplyservice.com and reach out when you are ready to talk specifics.
